NOTCHE – 38 W / 57 W – 4 m light building element
Lighting pointsRequest a callback Ask for a quote

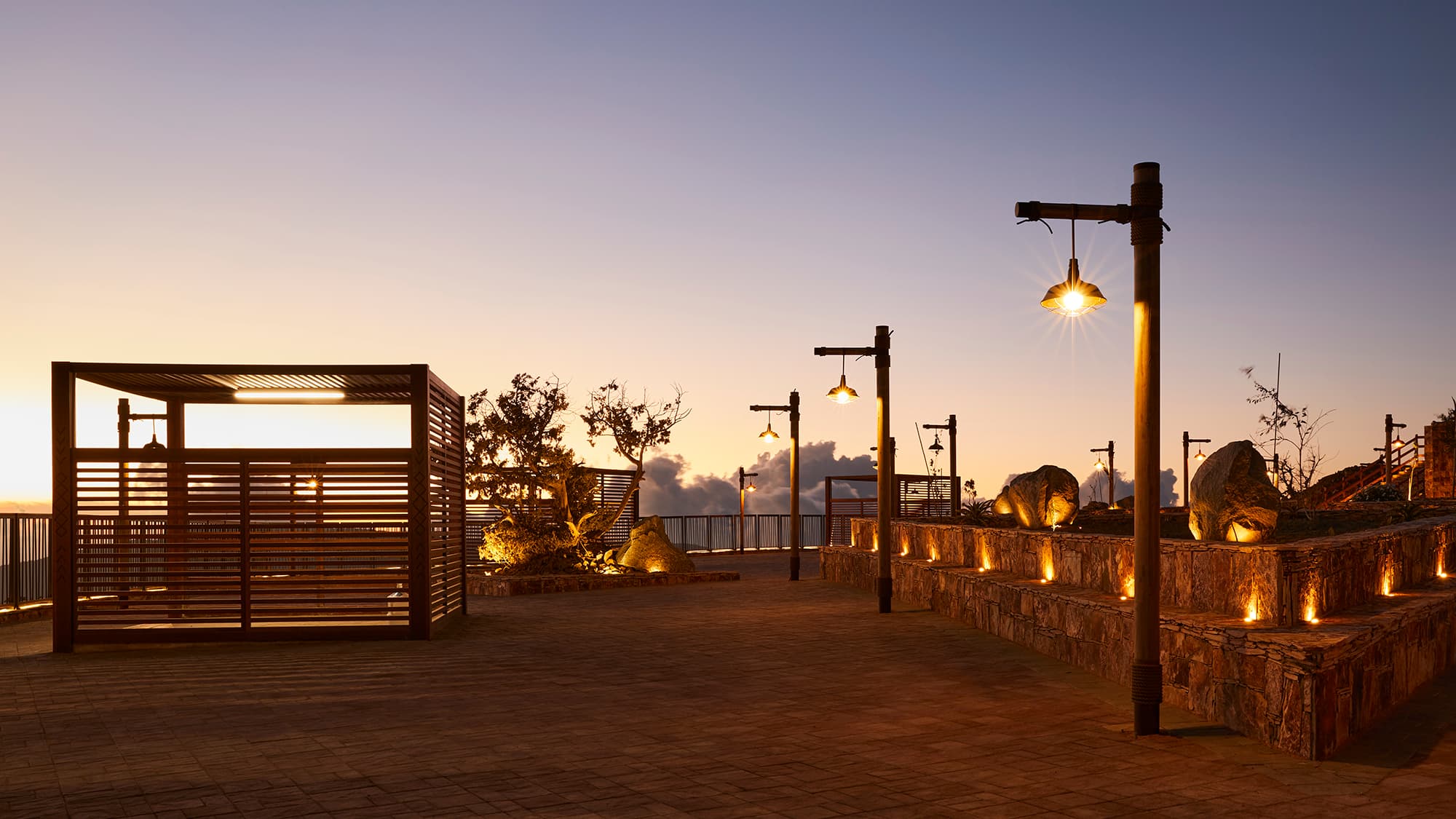

Light building elements for pathways, plots, parks, squares and around buildings.
Luminaire made of aluminium alloy, aluminium and stainless steel. Clear safety glass. Silicone gasket. Reflector surface made of pure aluminium. Silicone optical lens. Stainless steel shield.
Regular square shaft in glued laminated wood GL24H certified ACERBOIS GLULAM, produced with sawn planks from sustainably managed forests and respecting HTE process. Timber finished with four coats of woodstain. Square flush base in galvanized steel and polyester powder coated finish. Overlying top in pressed galvanized steel, polyester powder coated finish. Projector support in mechanowelded steel, electrogalvanized, polyester powder coating.
Design and manufacture according to rules defined by DEE 120017-00-0106 Wood and metal lighting columns and specifications from European Technical Approval ETA-18/0016. CE marked product: Certificate of conformity CE 0679-CPR-0473.
LED 19 W light
1 911 lm – Colour temperature 3 000 K
Floodlight with diffused symmetrical wide beam light distribution. Half beam angle 46° with G½ threaded connection . Floodlight can be rotated 180° laterally and 85° vertically. Connecting cable X05BQ-F 5G1mm², cable length 5 m. LED power supply 220-240 V – 0/50-60 Hz – DC 176-276 V, DALI controllable.
Safety class I.
CE conformity mark.
Protection class IP 65.
Impact strength IK08.
Metal: Matt fine texture 7024.
Luminaire colour: Graphite or Silver.
Ref. PCA08066 / Ref. PCA09564
